EDGEF



Purpose:  Used to define dimensions of bolted web splices.



-->    Given in girder input

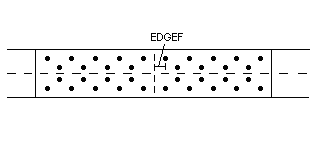

Edge distance (inches or mm) on flange plate from center of bolts nearest the edge to web splice. (Also see EDGEH , EDGEV , EDGEW , GAGEH , GAGEV , NLINEH , NLINEV , SPLT , SPLTYP)
