WEBV



Purpose:  Used to define haunched web depth of plate girders or box girders.



-->    Given in girder input



Depth of web plate (inches or mm) at points along the girder defined by WEBSP as an alternate to using HAUNV and necessary if nonhaunched sections are tapered.

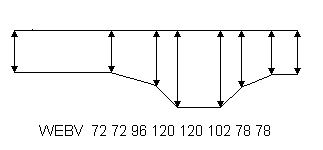

The first value is the web plate depth at the left bearing of the girder  (Note: there should be one more value given for WEBV than for WEBSP ).





Related topics:

Web Depth

Web Depth Settings

Girder Definition Input Reference
