EDGEH



Purpose:  Used to define dimensions of bolted web splices.



-->    Given in girder input

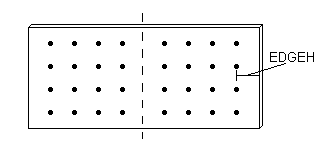

Horizontal edge distance (inches or mm) on web splice plate from center of bolts nearest the edge.  (Also see EDGEV , EDGEW , GAGEH , GAGEV , NLINEH , NLINEV , SPLT , SPLTYP)
