Purpose: Used to define haunched web depth of plate girders or box girders.
--> Given in girder input

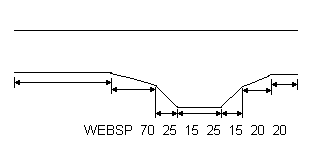

A list of spacings between given values of web depth, beginning from the left bearing of the girder (feet or meters) as an alternative to generating web haunch geometry. Note: there can not be any vertical transitions of zero width.
The slope of the web haunch curve at the end of the run away from the support is determined by the slope of the web profile in the next section away from the support (Note: If nonhaunched segments are all constant depth, generating web haunch geometry with HAUNV and HAUNH is recommended instead).
