Purpose: Used to define location of horizontal curvature transition points in parallel/concentric geometry Girder System Projects. (Not applicable to Line Girder Projects.)
--> Given in girder system input

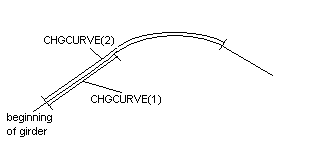

A list of locations (feet or meters) where the radius changes along Girder 1, the rightmost girder, measured from the beginning support.
Used when a change in radius does not occur midway between adjacent tenth points.
